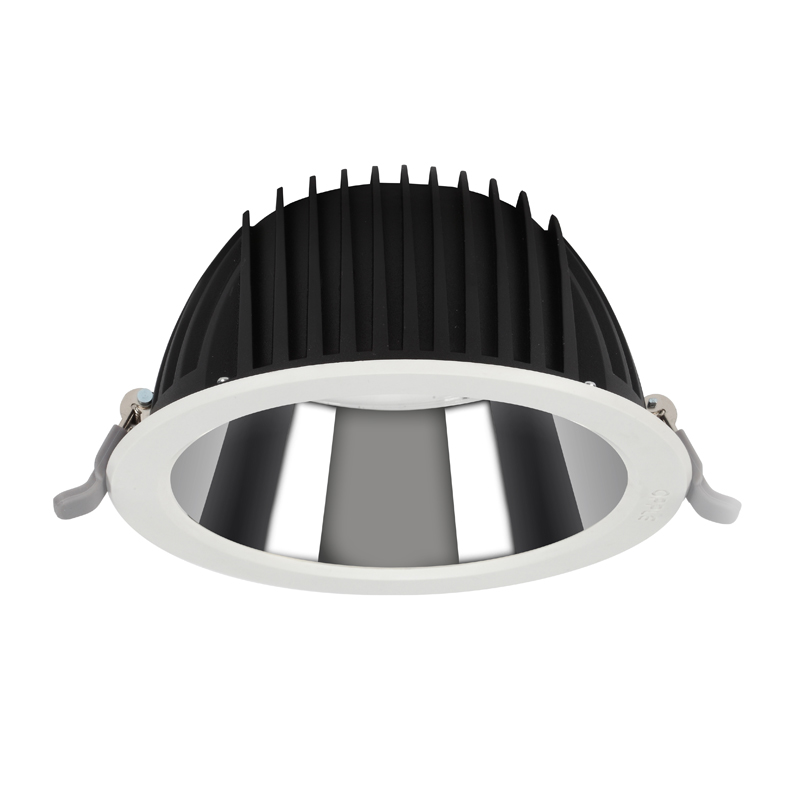

LED Downlight HR
You are here
LED Downlight HR
Benefits:
- Glare free, visually comfortable light for working, living and learning
- Up to 60% energy savings compared to CFL
- Lasts 5 times longer than CFL
- Easily retrofit conventional fixtures with LED
Features:
- Anti-glare Darklight reflector, UGR < 19
- High lumen e cacy, 100 lm/W
- Optimal heat management
- Broad range of sizes: 2.5'', 3", 4", 6'' or 8''
Applications
Airport
Hospital
Hotel
Office
Retail
Shopping Mall
Technical Data
| Specifications Model |
 |
 |
 |
 |
|---|---|---|---|---|
| LEDDownlightRc-HR R82-5W-3000-WH-GP | LEDDownlightRc-HR R82-5W-4000-WH-GP | LEDDownlightRc-HR R82-5W-5700-WH-GP | LEDDownlightRc-HR R100-6W-3000-WH-GP | |
| Optical parameters | ||||
| Color Temperature | 3 000K | 4 000K | 5 700K | 3 000K |
| Lumen | 330lm | 370lm | 400lm | 430lm |
| Beam angle | 75 | |||
| CRI(Ra) | ≥80 | ≥80 | ≥80 | ≥80 |
| Electrical parameters | ||||
| Input voltage range(VAC) | 220-240V | 220-240V | 220-240V | 220-240V |
| Input frequency(Hz) | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Input current(A) | 30 | 30 | 30 | 40 |
| Efficacy(lm/W) | 66 | 74 | 80 | 72 |
| Rated wattage(W)(Ta 25℃) | 5 | 5 | 5 | 6 |
Packaging information
| Code/Description | Packaging unit | Pieces per unit | Dimensions | Gross weight | Volume |
|---|---|---|---|---|---|
| LEDDownlightRc-HR R82-5W-3000-WH-GP | Shipping carton box | 18 | 400 × 270 × 265 mm | 5.09 kg | |
| LEDDownlightRc-HR R82-5W-4000-WH-GP | Shipping carton box | 18 | 400 × 270 × 265 mm | 5.09 kg | |
| LEDDownlightRc-HR R82-5W-5700-WH-GP | Shipping carton box | 18 | 400 × 270 × 265 mm | 5.09 kg | |
| LEDDownlightRc-HR R100-6W-3000-WH-GP | Shipping carton box | 18 | 465 × 315 × 305 mm | 7.42 kg | |
| LEDDownlightRc-HR R100-6W-4000-WH-GP | Shipping carton box | 18 | 465 × 315 × 305 mm | 7.42 kg | |
| LEDDownlightRc-HR R100-6W-5700-WH-GP | Shipping carton box | 18 | 465 × 315 × 305 mm | 7.42 kg | |
| LEDDownlightRc-HR R120-9W-3000-WH-GP | Shipping carton box | 6 | 290 × 150 × 320 mm | 2.7 kg | |
| LEDDownlightRc-HR R120-9W-4000-WH-GP | Shipping carton box | 6 | 290 × 150 × 320 mm | 2.7 kg | |
| LEDDownlightRc-HR R120-9W-5700-WH-GP | Shipping carton box | 6 | 290 × 150 × 320 mm | 2.7 kg | |
| LEDDownlightRc-HRP R120-9W-3000-WH-GP | Shipping carton box | 8 | 316 × 316 × 184 mm | 4.56 kg | |
| LEDDownlightRc-HRP R120-9W-4000-WH-GP | Shipping carton box | 8 | 316 × 316 × 184 mm | 4.56 kg | |
| LEDDownlightRc-HRP R120-9W-5700-WH-GP | Shipping carton box | 8 | 316 × 316 × 184 mm | 4.56 kg | |
| LEDDownlightRc-HR R175-14W-3000-WH-GP | Shipping carton box | 6 | 584 × 396 × 140 mm | 5.76 kg | |
| LEDDownlightRc-HR R175-14W-4000-WH-GP | Shipping carton box | 6 | 584 × 396 × 140 mm | 5.76 kg | |
| LEDDownlightRc-HR R175-14W-5700-WH-GP | Shipping carton box | 6 | 584 × 396 × 140 mm | 5.76 kg | |
| LEDDownlightRc-HRP R175-14W-3000-WH-GP | Shipping carton box | 8 | 436 × 436 × 228 mm | 8.56 kg | |
| LEDDownlightRc-HRP R175-14W-4000-WH-GP | Shipping carton box | 8 | 436 × 436 × 228 mm | 8.56 kg | |
| LEDDownlightRc-HRP R175-14W-5700-WH-GP | Shipping carton box | 8 | 436 × 436 × 228 mm | 8.56 kg | |
| LEDDownlightRc-HR R210-29W-3000-WH-GP | Shipping carton box | 6 | 520 × 267 × 455 mm | 9.6 kg | |
| LEDDownlightRc-HR R210-29W-4000-WH-GP | Shipping carton box | 6 | 520 × 267 × 455 mm | 9.6 kg | |
| LEDDownlightRc-HR R210-29W-5700-WH-GP | Shipping carton box | 6 | 520 × 267 × 455 mm | 9.6 kg | |
| LEDDownlightRc-HR R210-42W-3000-WH-GP | Shipping carton box | 6 | 520 × 267 × 455 mm | 9.6 kg | |
| LEDDownlightRc-HR R210-42W-4000-WH-GP | Shipping carton box | 6 | 520 × 267 × 455 mm | 9.6 kg | |
| LEDDownlightRc-HR R210-42W-5700-WH-GP | Shipping carton box | 6 | 520 × 267 × 455 mm | 9.6 kg |
